TEKAL 3 SLOPE

Family Aluminium - Electronic enclosures - Metal

Description

Inclined extruded aluminium case with high quality painted finishing. Two ABS side panels, internal guides for PCB, recessed area for membrane keypad.Closing by six screws. Two colours combinations: black RAL 9004 / grey RAL 7012 - white RAL 9002 / light grey RAL 9018. Upon request wall-suspension element “MT7.0”.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

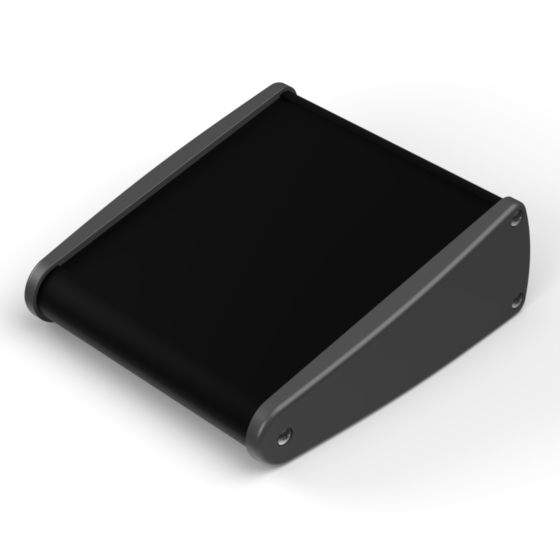

TEKAL-31SP.29 111 121 44 9004 7012
ALLOY 6060  -  1640 AS 100 100 6 - MT7
PDF
DWG
View

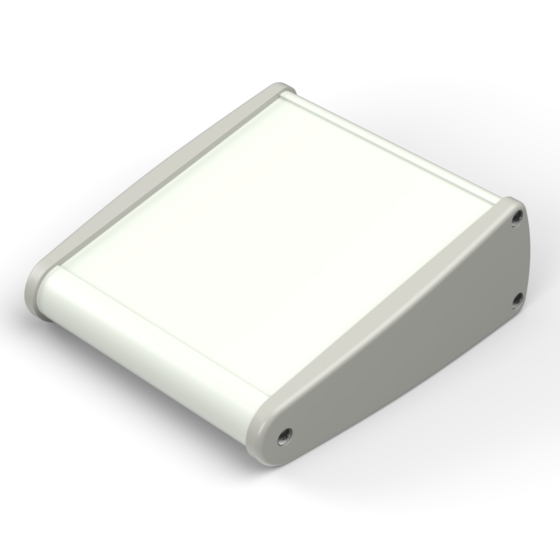

TEKAL-31SP.30 111 121 44 9002 9018
ALLOY 6060  -  1640 AS 100 100 6 - MT7
PDF
DWG
View

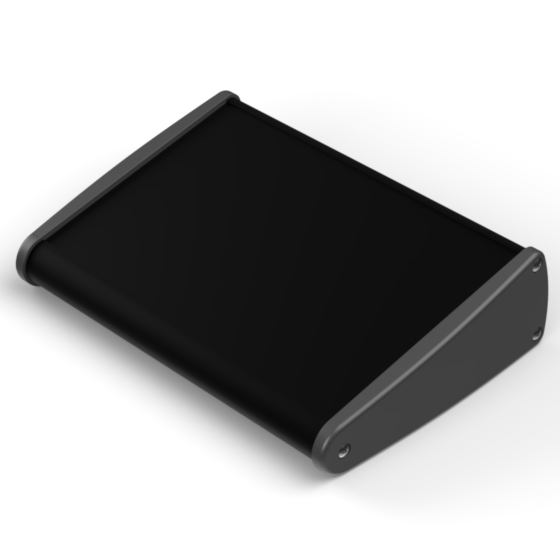

TEKAL-32SP.29 171 121 44 9004 7012
ALLOY 6060  -  1640 AS 160 100 6 - MT7
PDF
DWG
View

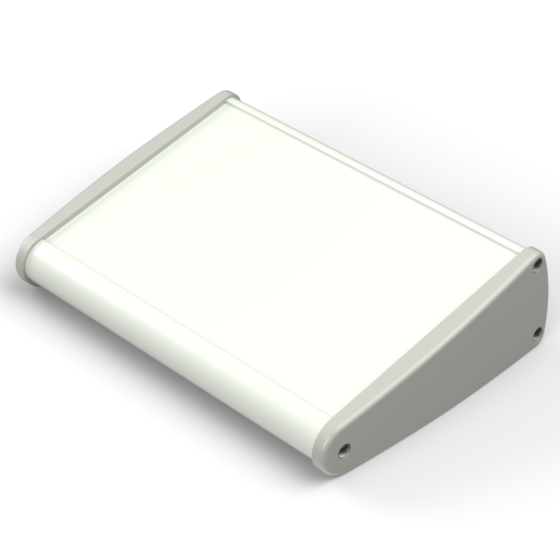

TEKAL-32SP.30 171 121 44 9002 9018
ALLOY 6060  -  1640 AS 160 100 6 - MT7
PDF
DWG
View

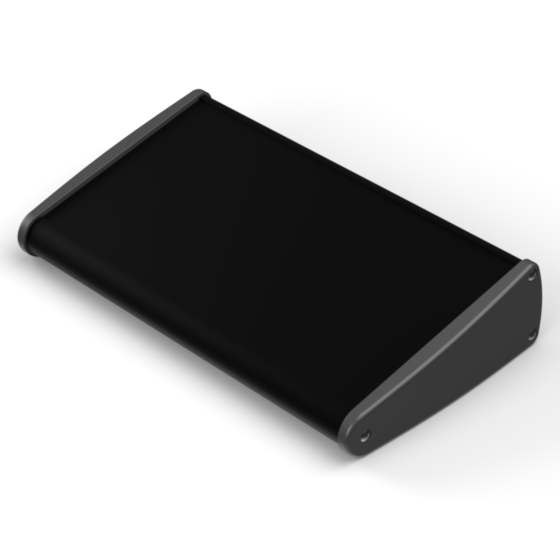

TEKAL-33SP.29 211 121 44 9004 7012
ALLOY 6060  -  1640 AS 200 100   - MT7
PDF
DWG
View

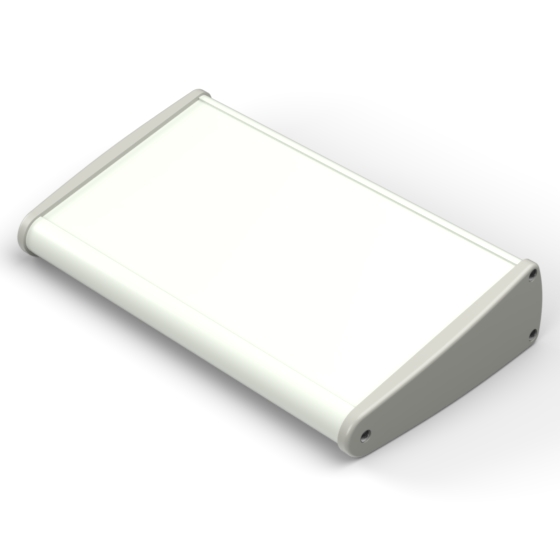

TEKAL-33SP.30 211 121 44 9002 9018
ALLOY 6060  -  1640 AS 200 100   - MT7
PDF
DWG
View
