POCKET 11

Family Pocket - Electronic enclosures - Plastic

Description

Ergonomic designed ABS enclosures available from one to six push-button configurations. The model “11120” has no buttons. The base has a integral PCB mounting studs. The enclosure is supplied with two metal contacts for 12V battery (Mod. ABM). Matt surface finish. Closing either snap-on or by one screw.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

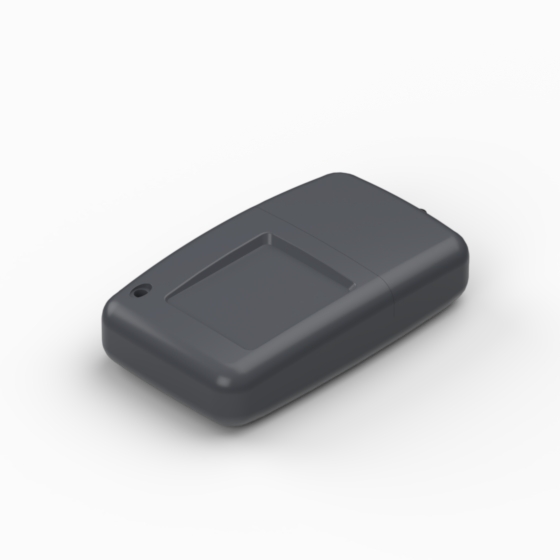

11120.4 74,7 44,1 18,2 7016
GP40 47 33,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 47
  • MAX PCB W (mm): 33,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG

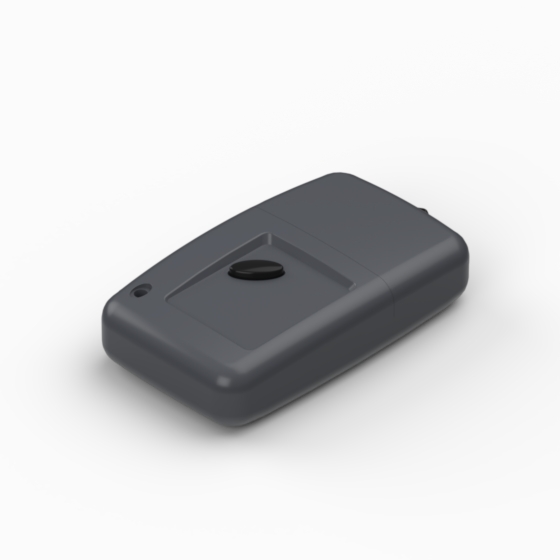

11121.4 74,7 44,1 18,2 7016
GP40 47 33,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 47
  • MAX PCB W (mm): 33,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG
11122.4 74,7 44,1 18,2 7016
GP40 47 33,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 47
  • MAX PCB W (mm): 33,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG

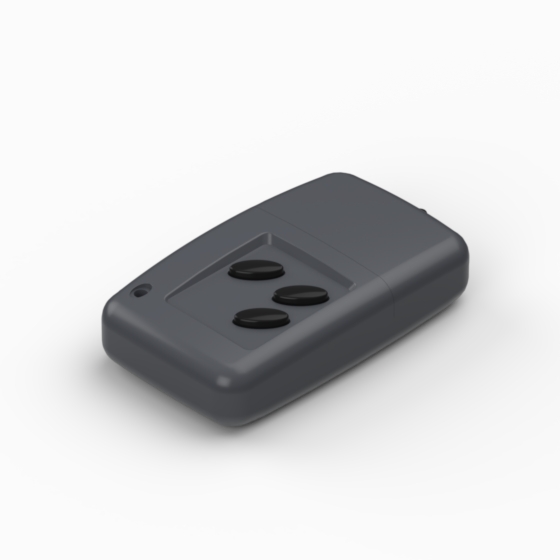

11123.4 74,7 44,1 18,2 7016
GP40 47 33,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 47
  • MAX PCB W (mm): 33,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG
11124.4 74,7 44,1 18,2 7016
GP40 47 33,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 47
  • MAX PCB W (mm): 33,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG
11125.4 74,7 44,1 18,2 7016
GP40 47 33,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 47
  • MAX PCB W (mm): 33,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG
11126.4 74,7 44,1 18,2 7016
GP40 47 33,5 1 1 x 12V PDF
DWG
View
  • Color (Ral): 7016
  • Material: GP40
  • MAX PCB L (mm): 47
  • MAX PCB W (mm): 33,5
  • Screws: 1
  • Battery: 1 x 12V
  • Accessories:
  • Drawings:  PDF  DWG
