TEKAL 1

Famille Aluminium - Boîtiers électroniques - Métal

Description

Boîtier en aluminium extrudé avec une haute qualité du finissage extérieur. Deux couvercles en ABS, guides internes pour circuit imprimé et partie supérieure avec décrochement pour clavier à membrane. Les modèles référencés «-B» ont un logement pour deux piles à 1,5V (AA) ou une pile à 9V (PP3). Douze modèles à disposition avec dimensions différentes. Montage par quatre vis.

Détails

Produits

Modèle L (mm) W (mm) H (mm) Couleur (Ral) Matériel MAX PCB L (mm) MAX PCB W (mm) Vis Batterie Accessoires Dessins Plus

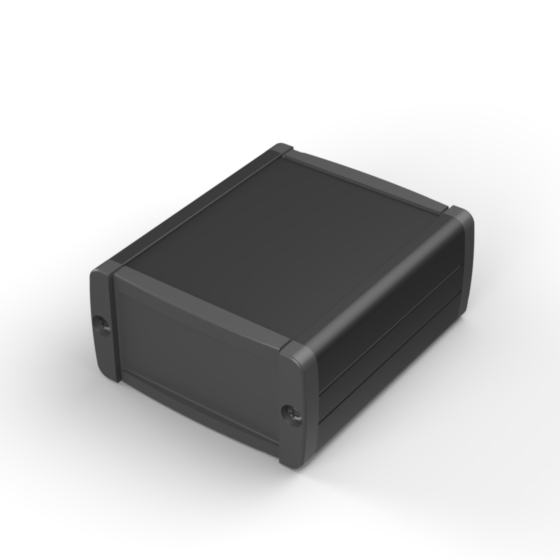

TEKAL-11.29 70 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 60 54,5 4 - ALP-1
PDF
DWG
Affiche

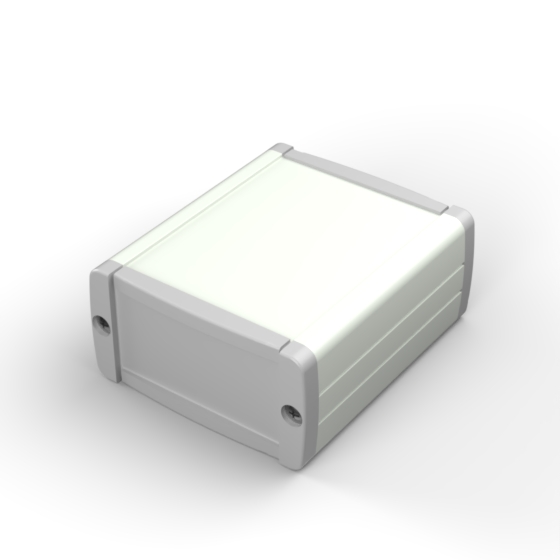

TEKAL-11.30 70 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 60 54,5 4 - ALP-1
PDF
DWG
Affiche

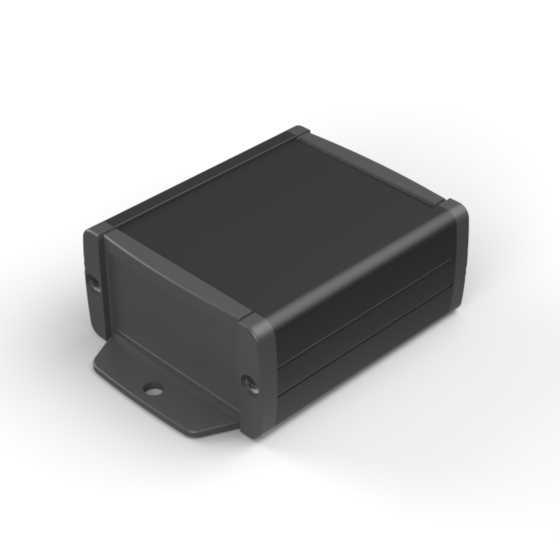

TEKAL-11/E.29 70 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 60 54,5 4 - ALP-1
PDF
DWG
Affiche

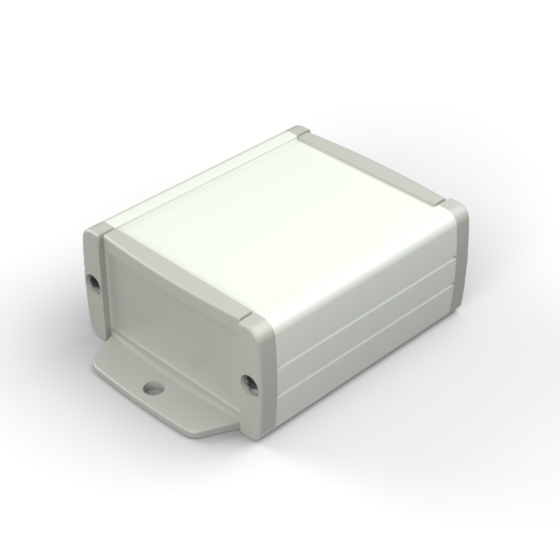

TEKAL-11/E.30 70 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 60 54,5 4 - ALP-1
PDF
DWG
Affiche

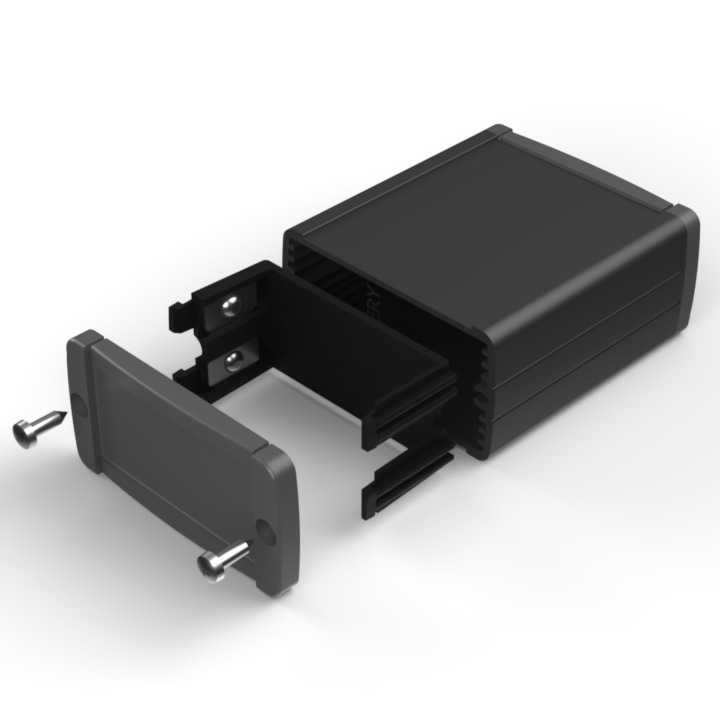

TEKAL-11B.29 70 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 38 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

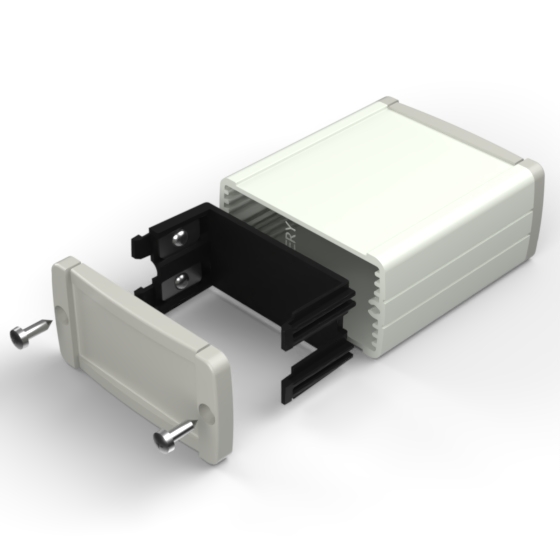

TEKAL-11B.30 70 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 38 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

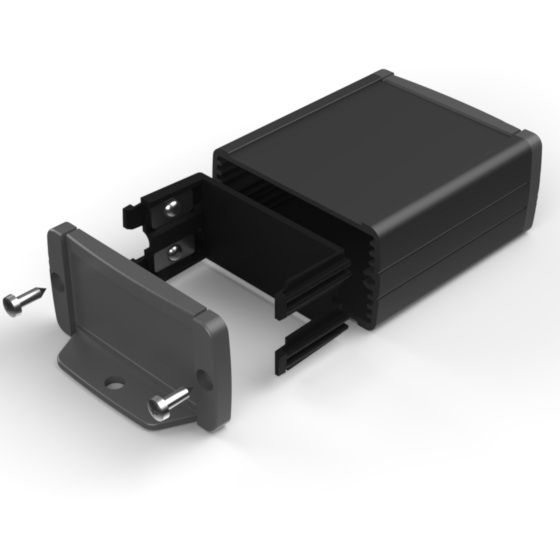

TEKAL-11B/E.29 70 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 38 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

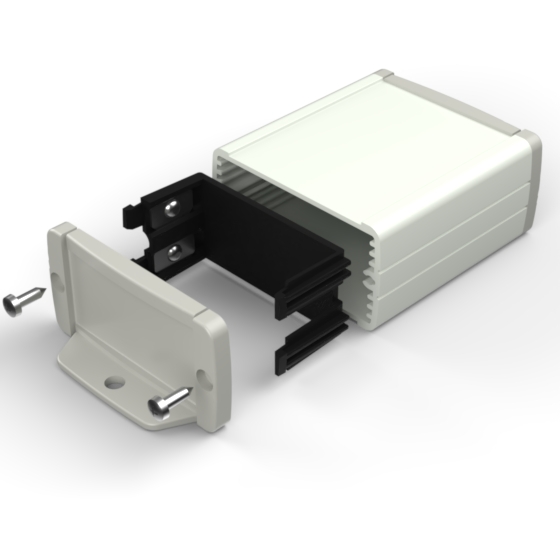

TEKAL-11B/E.30 70 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 38 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

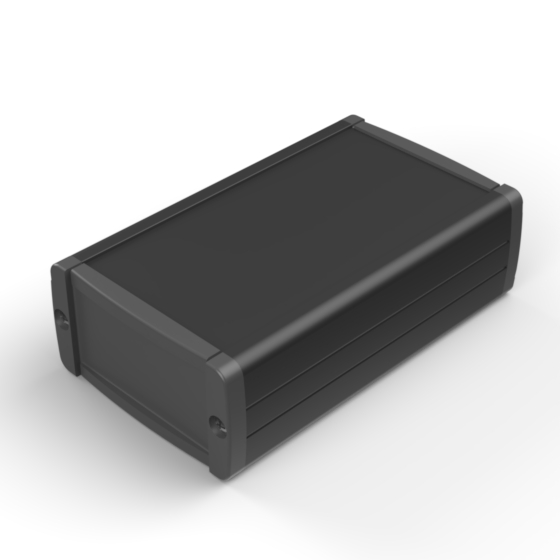

TEKAL-12.29 100 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 90 54,5 4 - ALP-1
PDF
DWG
Affiche

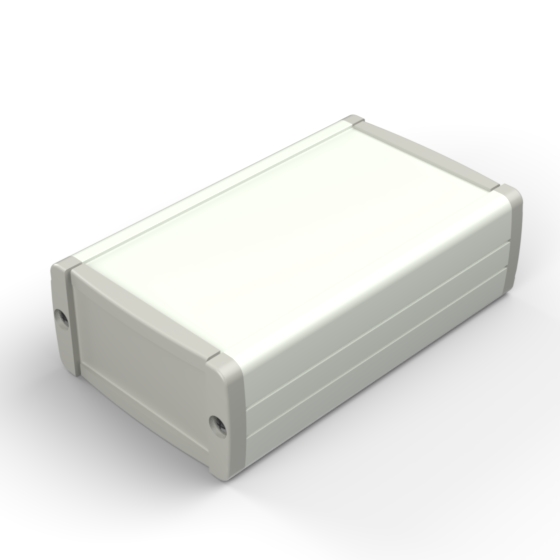

TEKAL-12.30 100 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 90 54,5 4 - ALP-1
PDF
DWG
Affiche

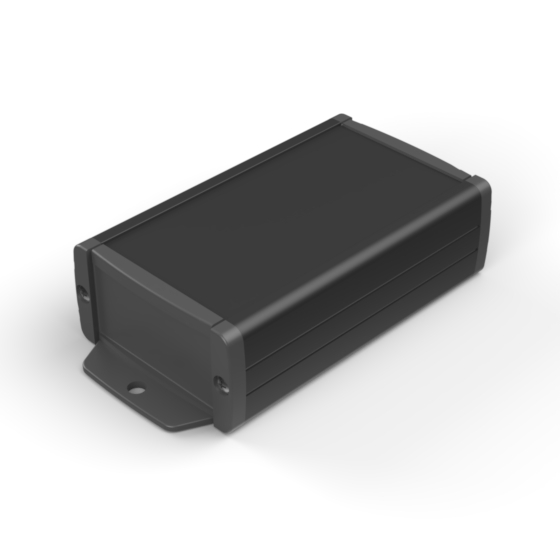

TEKAL-12/E.29 100 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 90 54,5 4 - ALP-1
PDF
DWG
Affiche

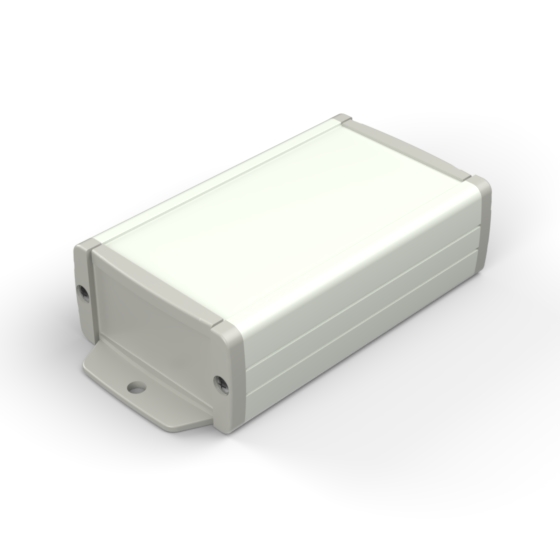

TEKAL-12/E.30 100 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 90 54,5 4 - ALP-1
PDF
DWG
Affiche

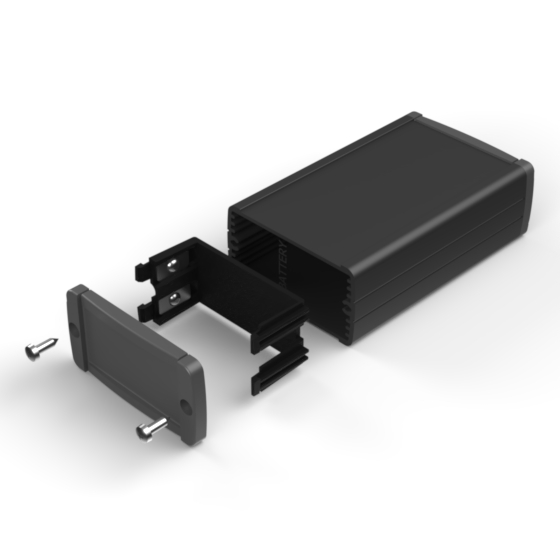

TEKAL-12B.29 100 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 68 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

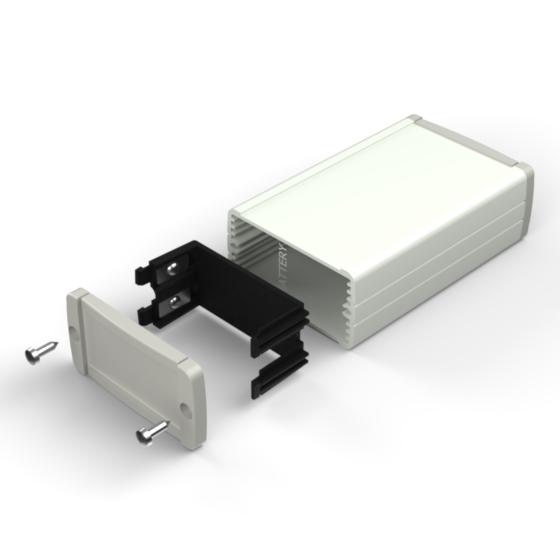

TEKAL-12B.30 100 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 68 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

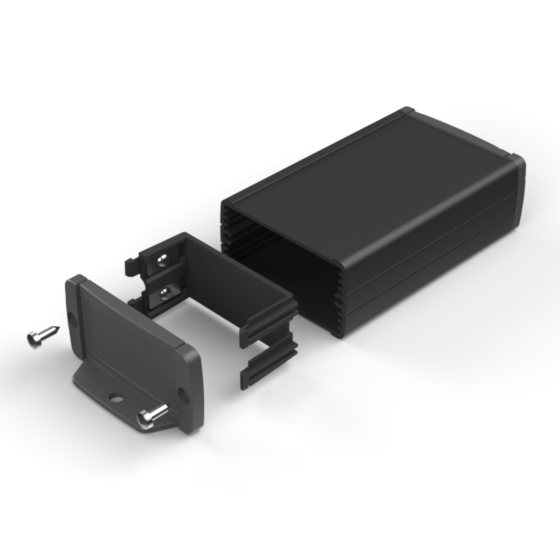

TEKAL-12B/E.29 100 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 68 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

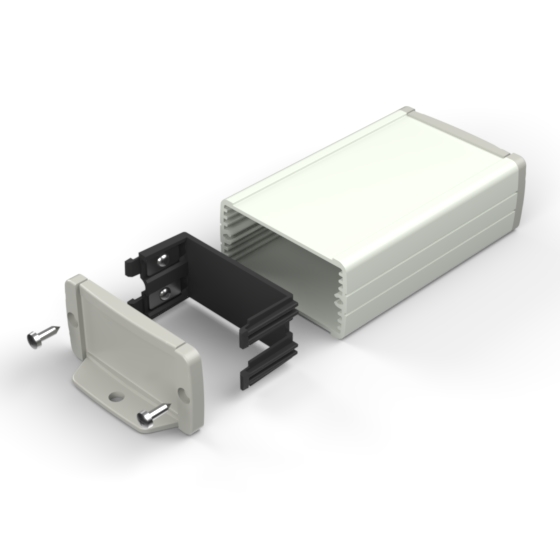

TEKAL-12B/E.30 100 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 68 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

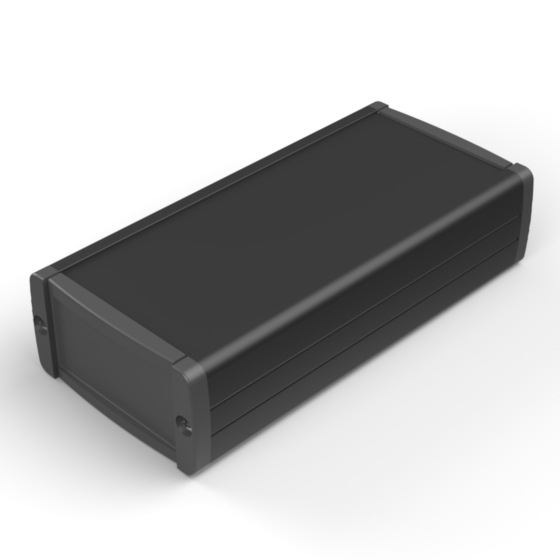

TEKAL-13.29 125 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 115 54,5 4 - ALP-1
PDF
DWG
Affiche

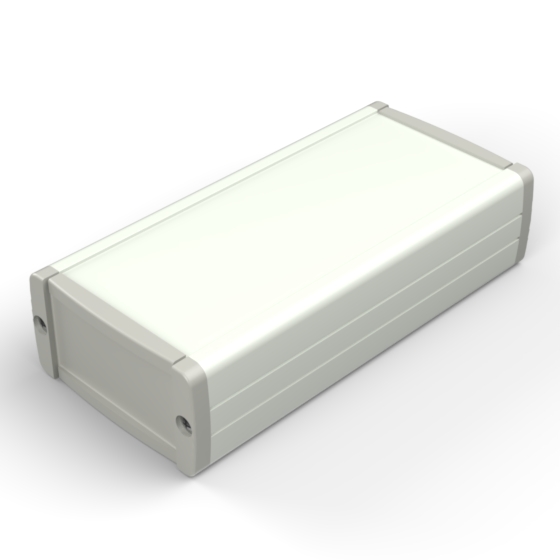

TEKAL-13.30 125 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 115 54,5 4 - ALP-1
PDF
DWG
Affiche

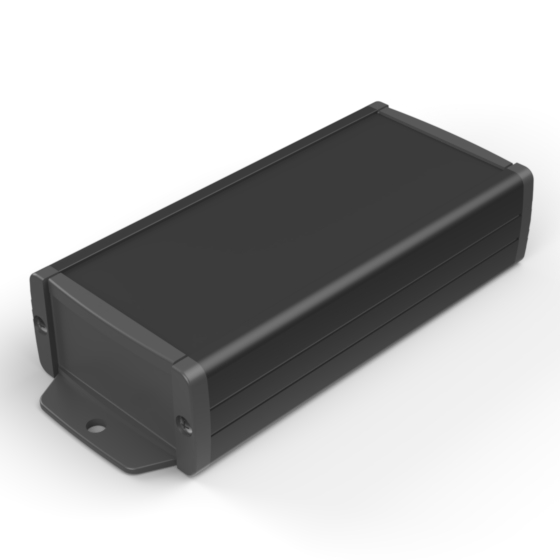

TEKAL-13/E.29 125 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 115 54,5 4 - ALP-1
PDF
DWG
Affiche

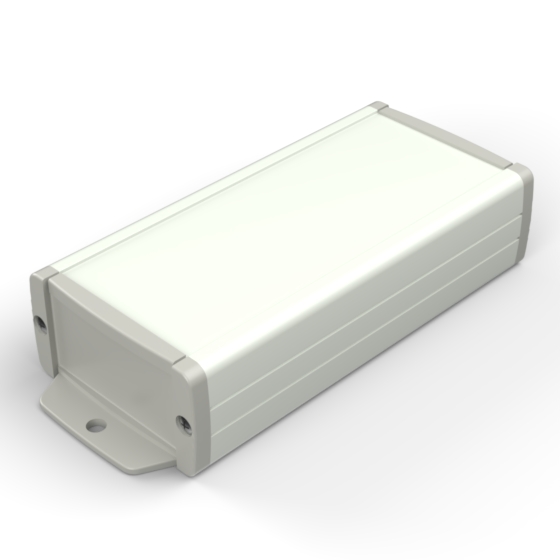

TEKAL-13/E.30 125 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 115 54,5 4 - ALP-1
PDF
DWG
Affiche

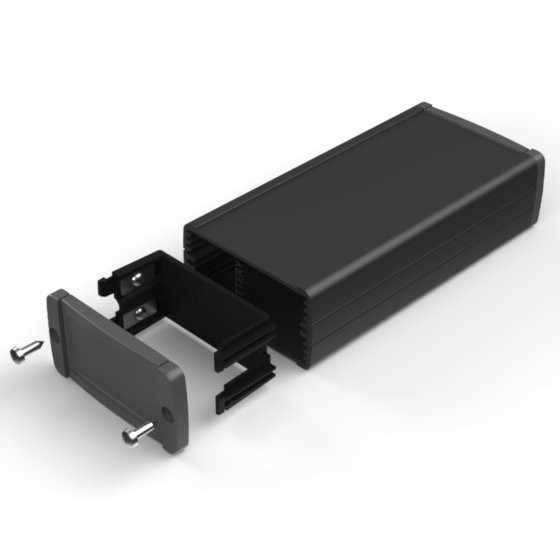

TEKAL-13B.29 125 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 93 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

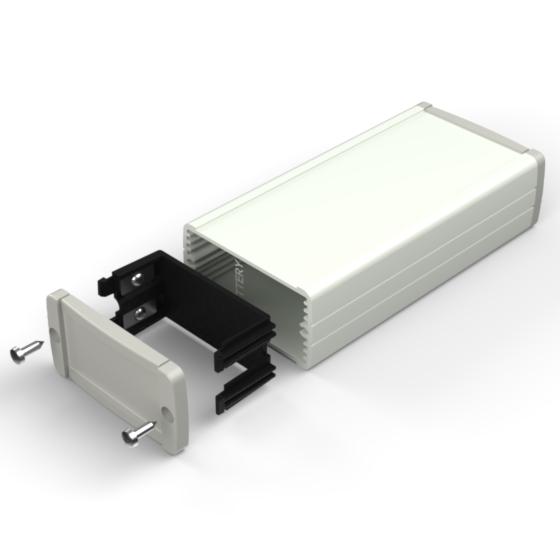

TEKAL-13B.30 125 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 93 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

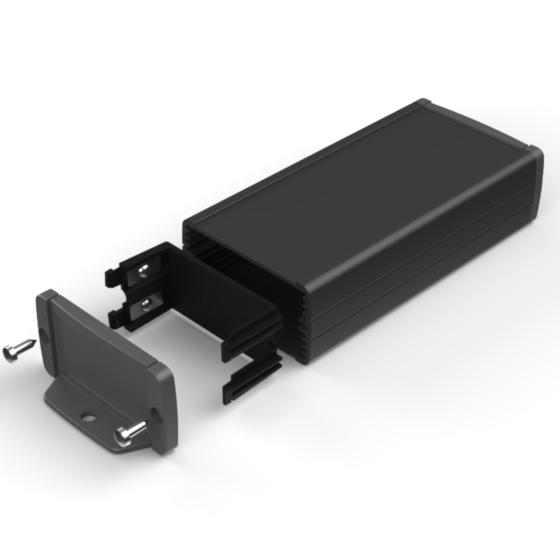

TEKAL-13B/E.29 125 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 93 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche

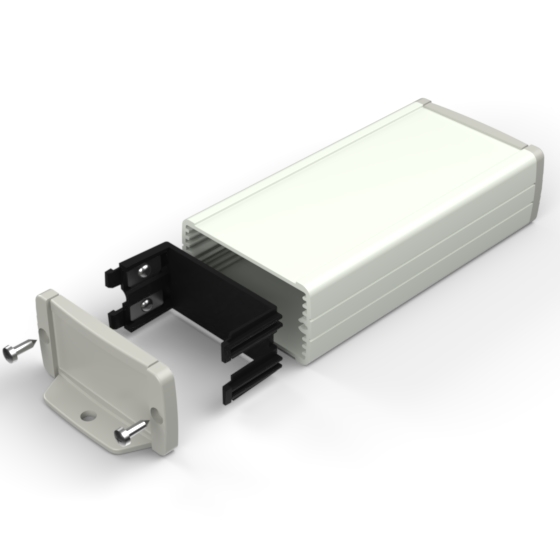

TEKAL-13B/E.30 125 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 93 54,5 4 1 x 9V ALP-1
PDF
DWG
Affiche
