EURO 93

Family Front Panel - Electronic enclosures - Plastic

EURO 93

Description

ABS enclosures with two 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws.

Details

EURO 93 - dettaglio 1

EURO 93 - dettaglio 2

Products

	Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Drawings	Other
	931.5	178	131,5	36	9018	AG-ATY	158	116	2	-			View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

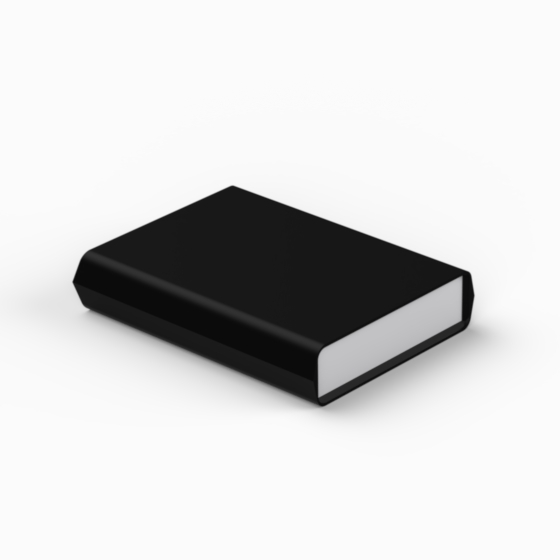

	931.9	178	131,5	36	9004	P2H-AT	158	116	2	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

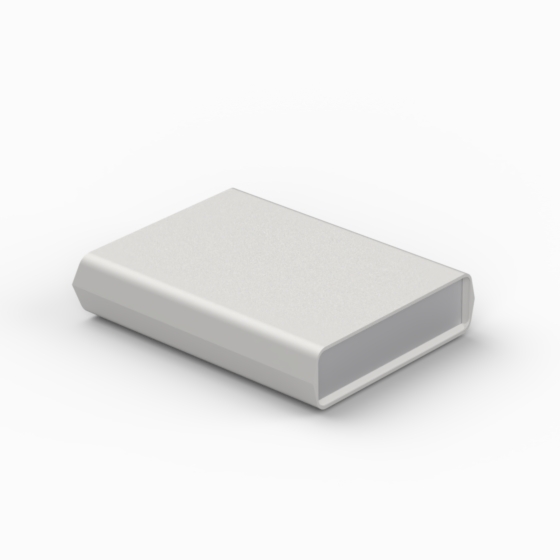

	931-C.5	178	131,5	36	9018	AG-ATY	158	116	2	-			View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

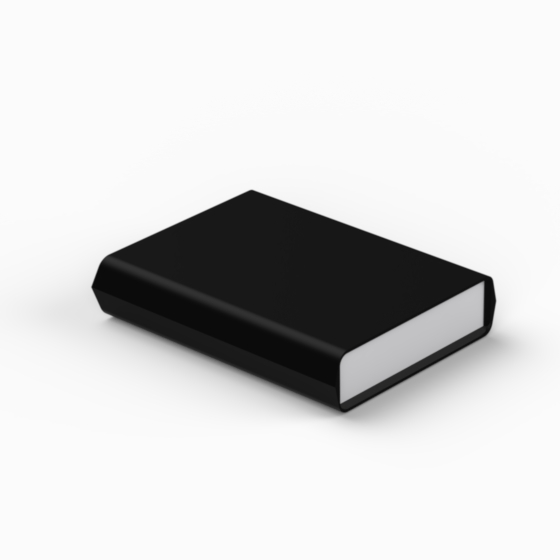

	931-C.9	178	131,5	36	9004	P2H-AT	158	116	2	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

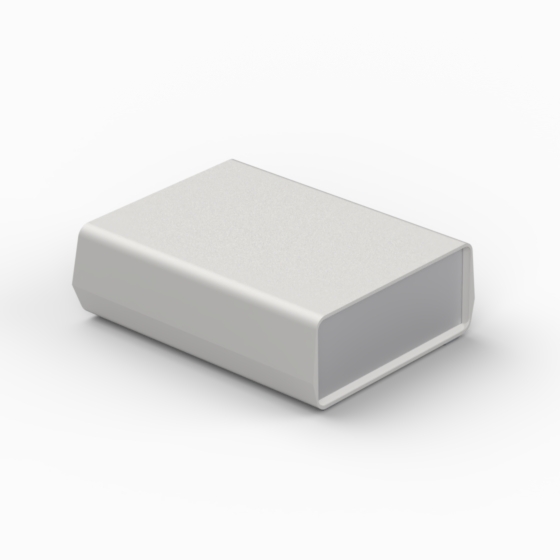

	932.5	178	131,5	54	9018	AG-ATY	158	116	2	-			View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

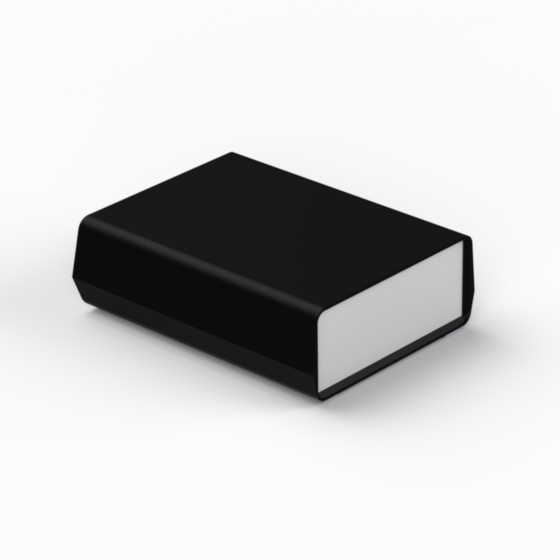

	932.9	178	131,5	54	9004	P2H-AT	158	116	2	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

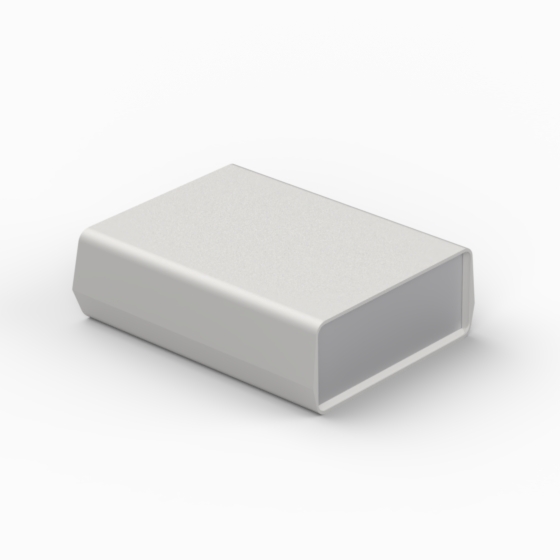

	932-C.5	178	131,5	54	9018	AG-ATY	158	116	2	-			View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

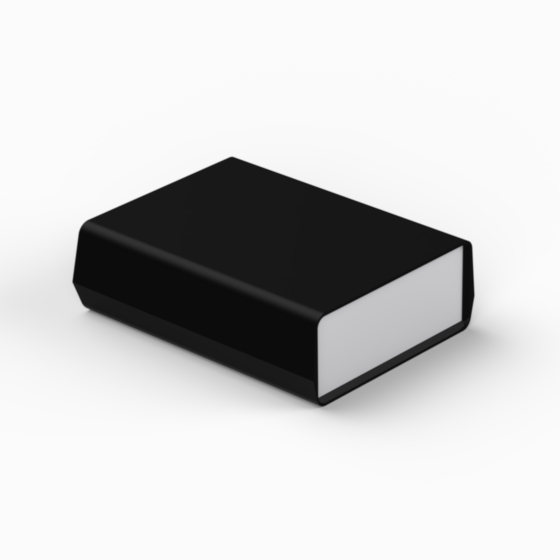

	932-C.9	178	131,5	54	9004	P2H-AT	158	116	2	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

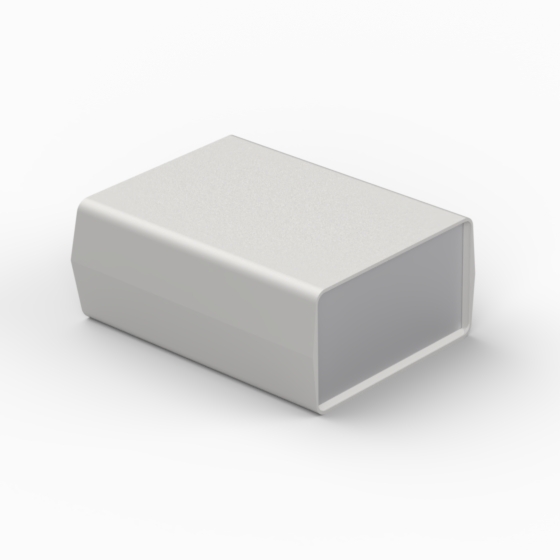

	933.5	178	131,5	72	9018	AG-ATY	158	116	2	-			View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

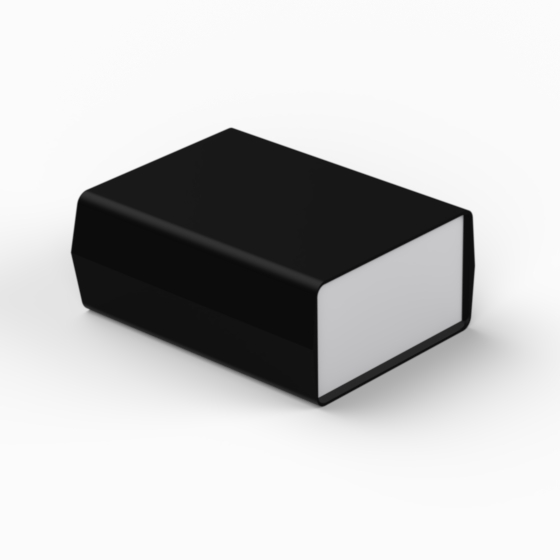

	933.9	178	131,5	72	9004	P2H-AT	158	116	2	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG
	933-C.5	178	131,5	72	9018	AG-ATY	158	116	2	-			View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG
	933-C.9	178	131,5	72	9004	P2H-AT	158	116	2	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 158 MAX PCB W (mm): 116 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

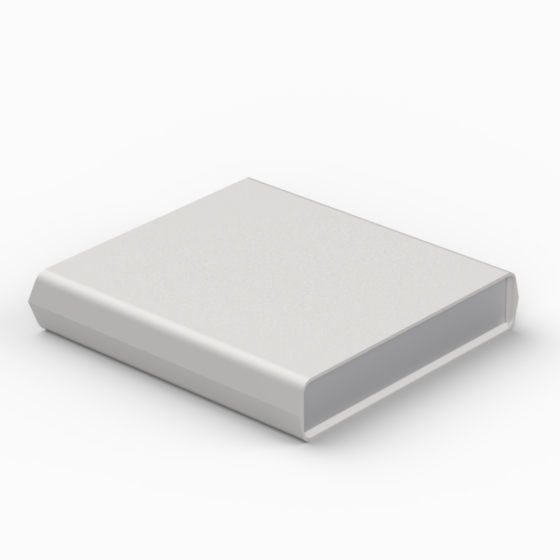

	934.5	198	178	36	9018	AG-ATY	178	162	2	-			View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 178 MAX PCB W (mm): 162 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

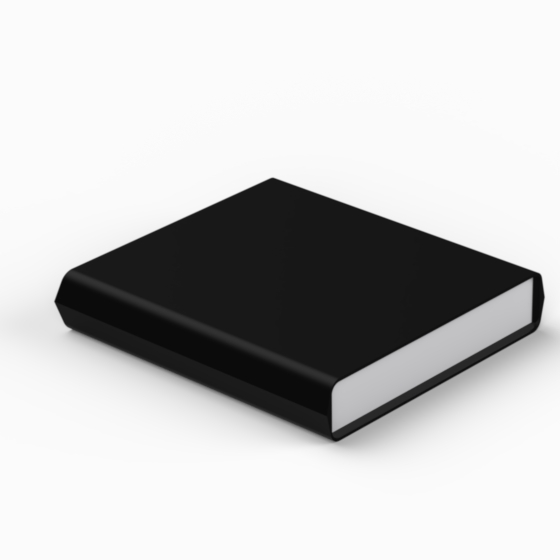

	934.9	198	178	36	9004	P2H-AT	178	162	2	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 178 MAX PCB W (mm): 162 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

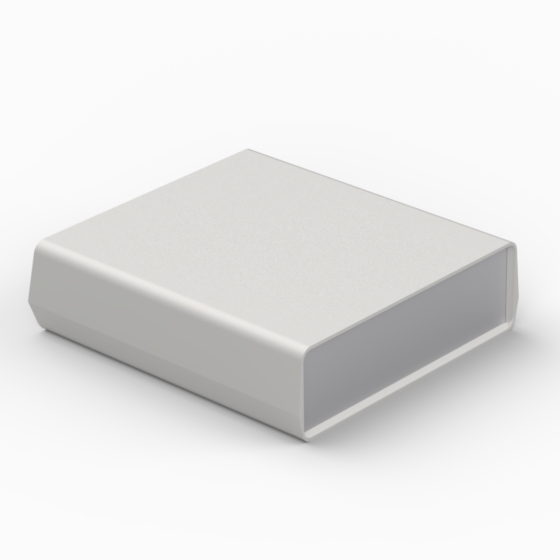

	935.5	198	178	54	9018	AG-ATY	178	162	2	-			View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 178 MAX PCB W (mm): 162 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

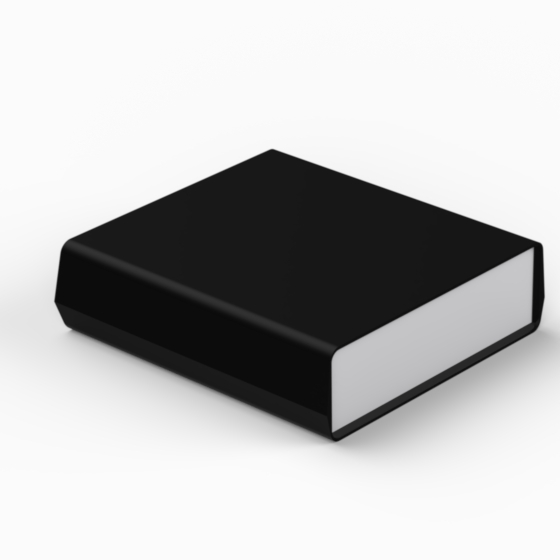

	935.9	198	178	54	9004	P2H-AT	178	162	2	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 178 MAX PCB W (mm): 162 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

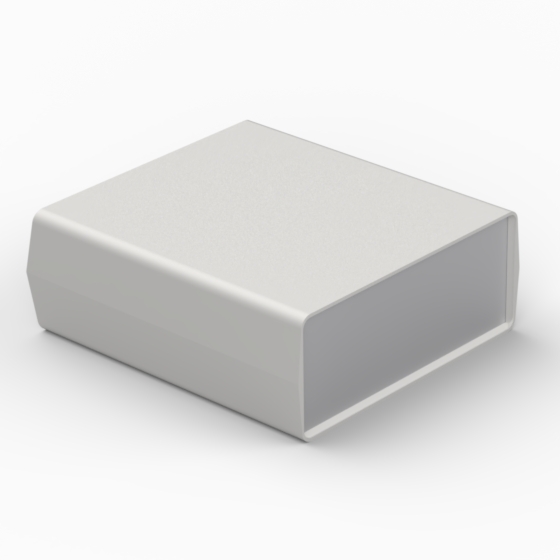

	936.5	198	178	72	9018	AG-ATY	178	162	2	-			View Color (Ral): 9018 Material: AG-ATY MAX PCB L (mm): 178 MAX PCB W (mm): 162 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

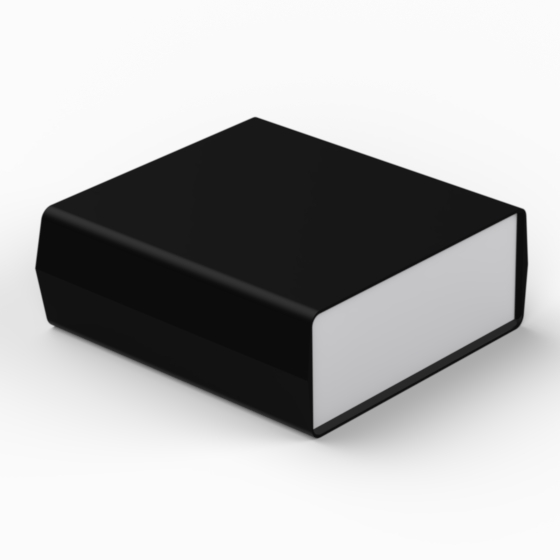

	936.9	198	178	72	9004	P2H-AT	178	162	2	-			View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): 178 MAX PCB W (mm): 162 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

13 product families, 155 series. You can't find what you're looking for? Contact us
