Description

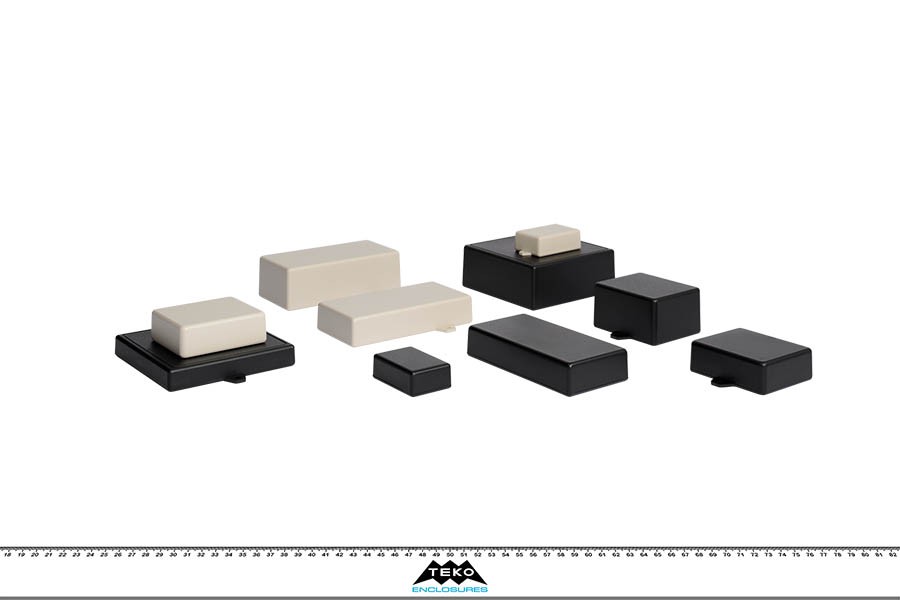

ABS enclosures with matt surfaces and rounded corners. The models marked with "-E" have flanges for wall mounting. Closing by two or four screws.

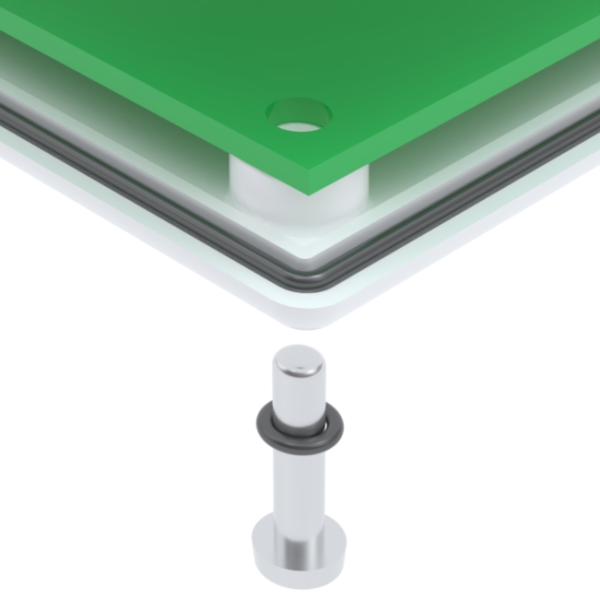

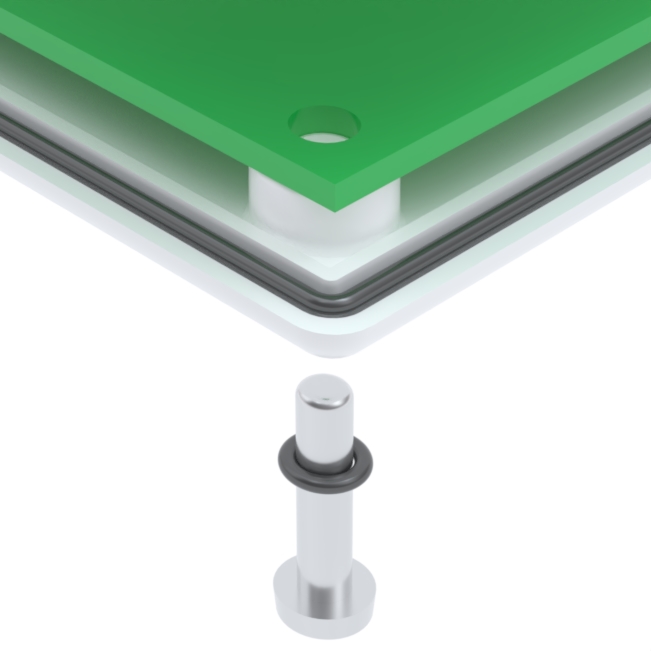

The enclosures are supplied with a kit consisting of perimeter seal and o-ring for the screws.

Details

SMART K - WITH IP65 PROTECTION - dettaglio 1

Products

Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Other

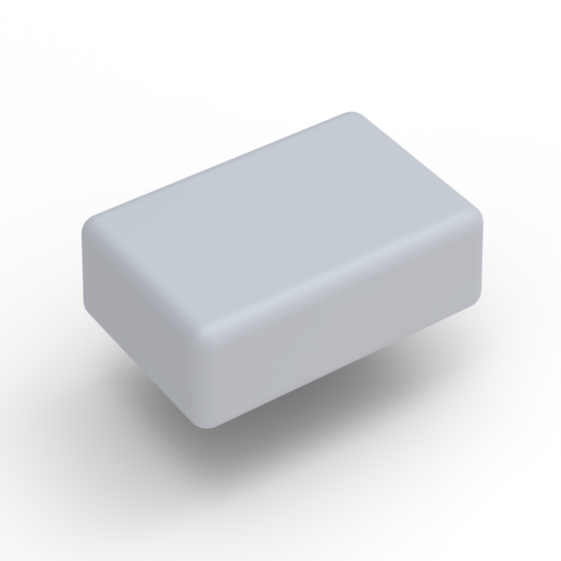

SR01K.7 NEW	57,4	38,3	20	9002	TERLURAN GP-22	51	32	2	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 51 MAX PCB W (mm): 32 Screws: 2 Battery: Accessories: Drawings: PDF DWG

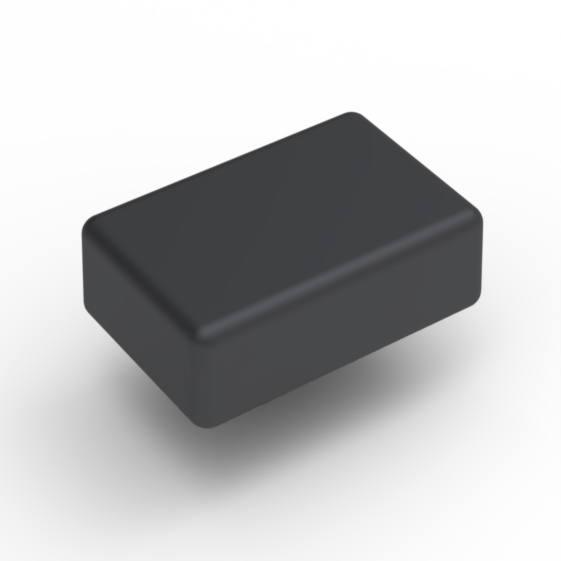

SR01K.9 NEW	57,4	38,3	20	9004	TERLURAN GP-22	51	32	2	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 51 MAX PCB W (mm): 32 Screws: 2 Battery: Accessories: Drawings: PDF DWG

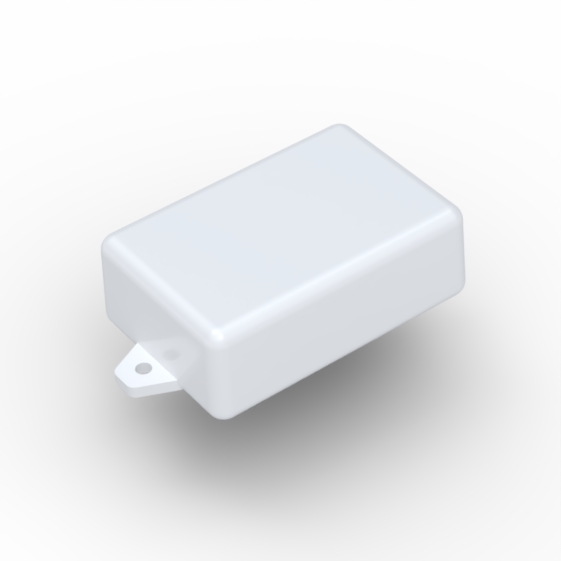

SR01K-E.7 NEW	57,4	38,3	20	9002	TERLURAN GP-22	51	32	2	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 51 MAX PCB W (mm): 32 Screws: 2 Battery: Accessories: Drawings: PDF DWG
SR01K-E.9 NEW	57,4	38,3	20	9004	TERLURAN GP-22	51	32	2	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 51 MAX PCB W (mm): 32 Screws: 2 Battery: Accessories: Drawings: PDF DWG

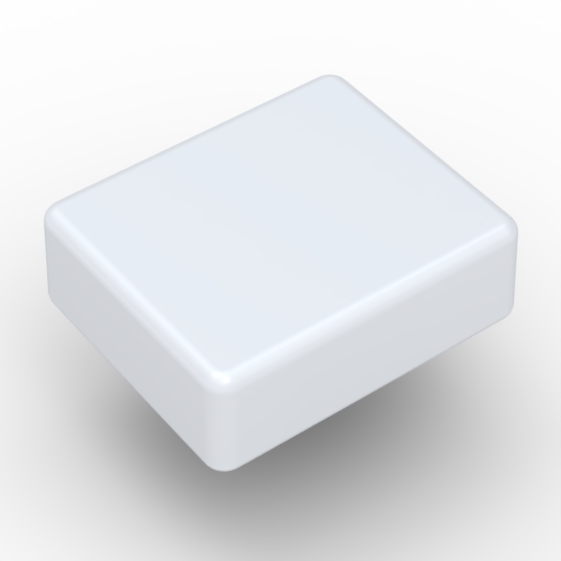

SR22K.7 NEW	76	63,2	25,55	9002	TERLURAN GP-22	68	56	4	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 68 MAX PCB W (mm): 56 Screws: 4 Battery: Accessories: Drawings: PDF DWG

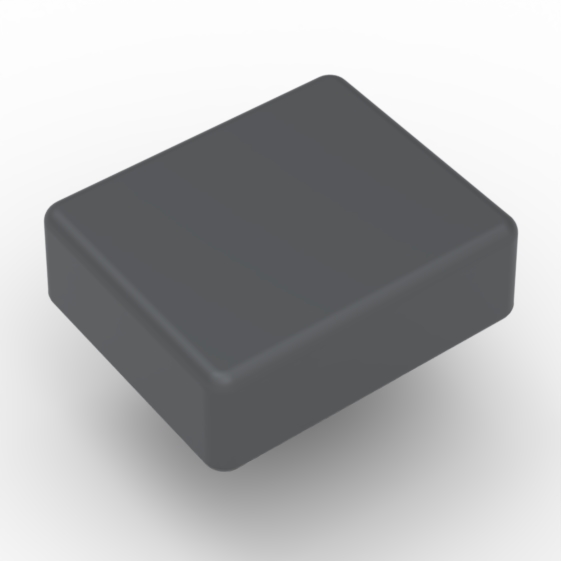

SR22K.9 NEW	76	63,2	25,55	9004	TERLURAN GP-22	68	56	4	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 68 MAX PCB W (mm): 56 Screws: 4 Battery: Accessories: Drawings: PDF DWG

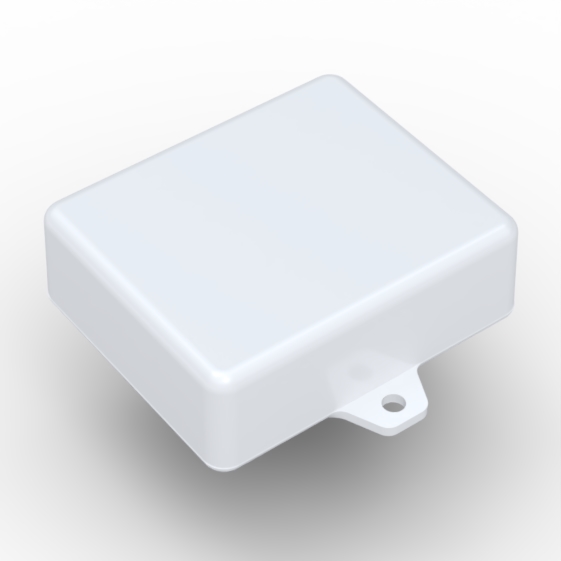

SR22K-E.7 NEW	76	63,2	25,55	9002	TERLURAN GP-22	68	56	4	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 68 MAX PCB W (mm): 56 Screws: 4 Battery: Accessories: Drawings: PDF DWG

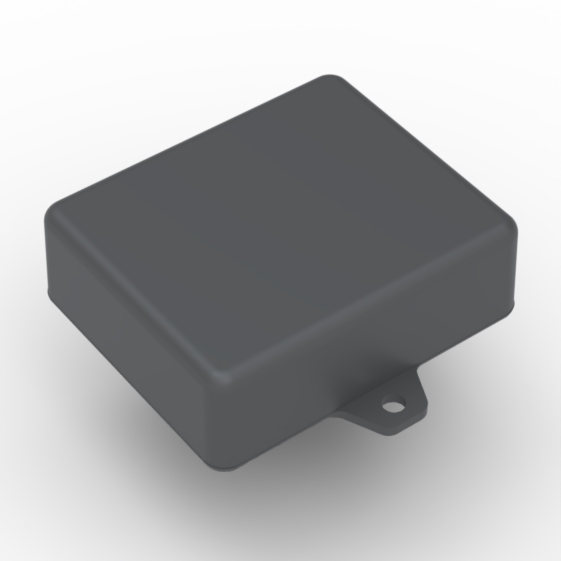

SR22K-E.9 NEW	76	63,2	25,55	9004	TERLURAN GP-22	68	56	4	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 68 MAX PCB W (mm): 56 Screws: 4 Battery: Accessories: Drawings: PDF DWG

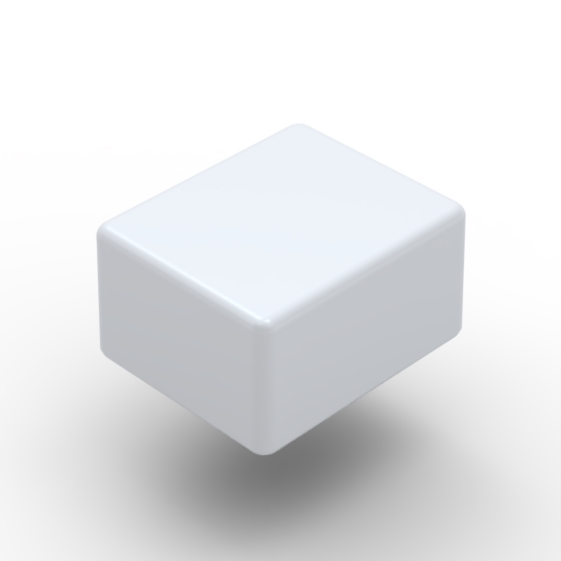

SR23K.7 NEW	76	63,35	41	9002	TERLURAN GP-22	68	56	4	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 68 MAX PCB W (mm): 56 Screws: 4 Battery: Accessories: Drawings: PDF DWG

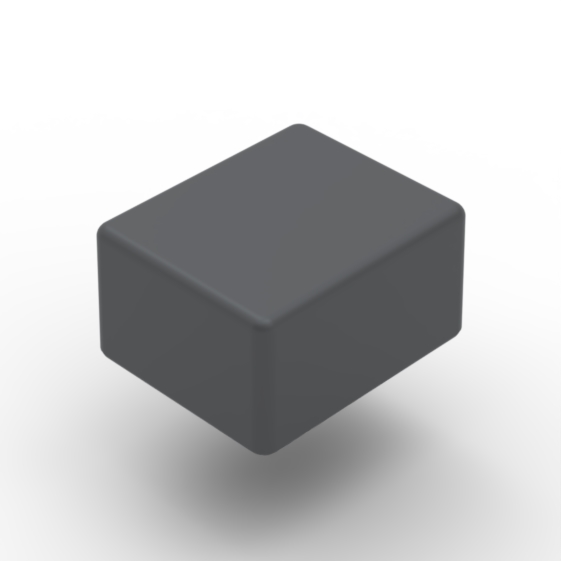

SR23K.9 NEW	76	63,35	41	9004	TERLURAN GP-22	68	56	4	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 68 MAX PCB W (mm): 56 Screws: 4 Battery: Accessories: Drawings: PDF DWG

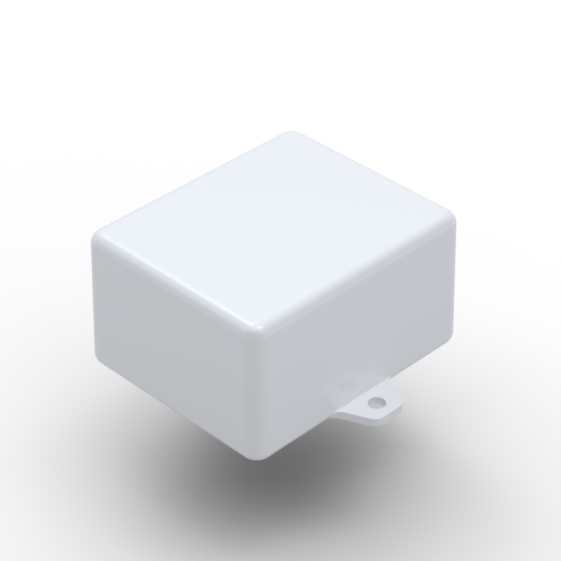

SR23K-E.7 NEW	76	63,35	41	9002	TERLURAN GP-22	68	56	4	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 68 MAX PCB W (mm): 56 Screws: 4 Battery: Accessories: Drawings: PDF DWG

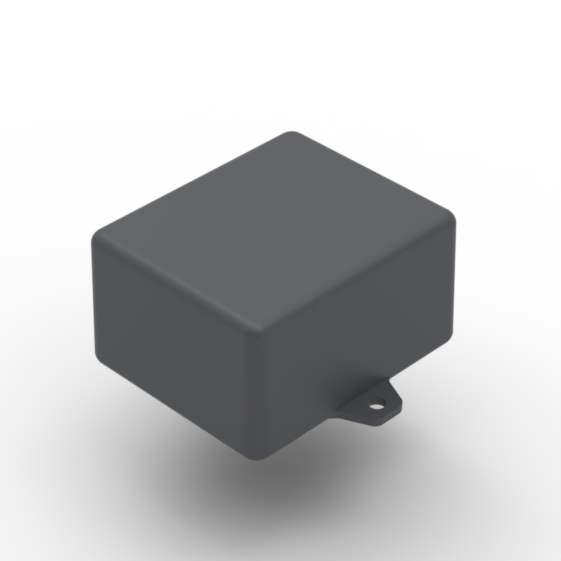

SR23K-E.9 NEW	76	63,35	41	9004	TERLURAN GP-22	68	56	4	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 68 MAX PCB W (mm): 56 Screws: 4 Battery: Accessories: Drawings: PDF DWG

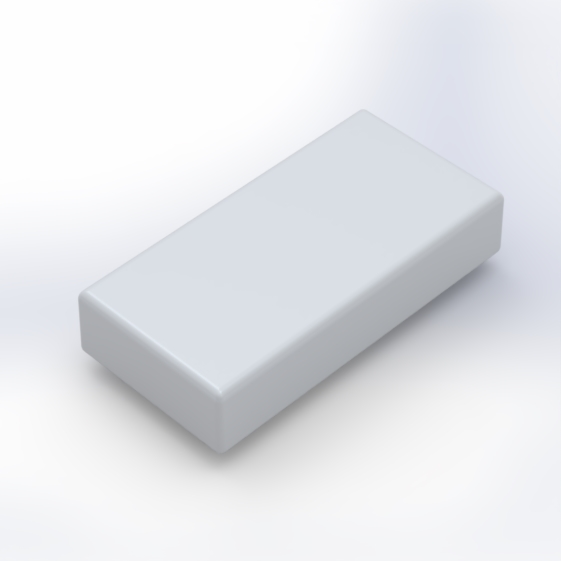

SR33K.7 NEW	127,9	64	26,3	9002	TERLURAN GP-22	120	57	4	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120 MAX PCB W (mm): 57 Screws: 4 Battery: Accessories: Drawings: PDF DWG

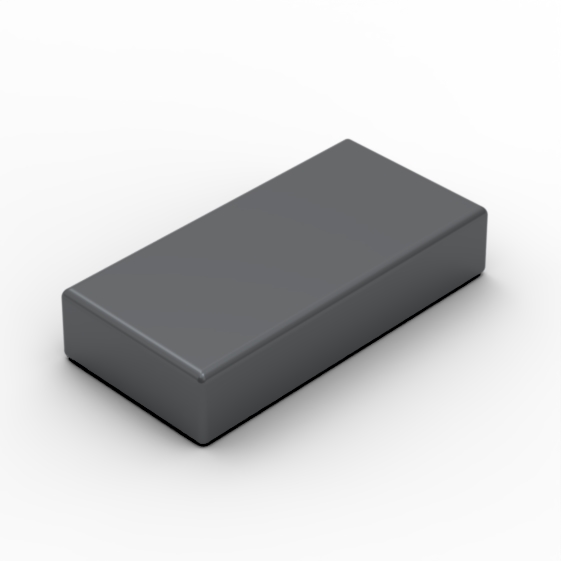

SR33K.9 NEW	127,9	64	26,3	9004	TERLURAN GP-22	120	57	4	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120 MAX PCB W (mm): 57 Screws: 4 Battery: Accessories: Drawings: PDF DWG

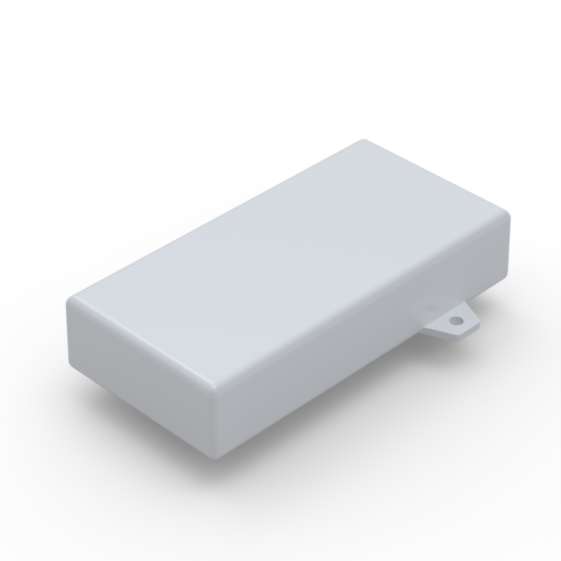

SR33K-E.7 NEW	127,9	64	26,30	9002	TERLURAN GP-22	120	57	4	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120 MAX PCB W (mm): 57 Screws: 4 Battery: Accessories: Drawings: PDF DWG

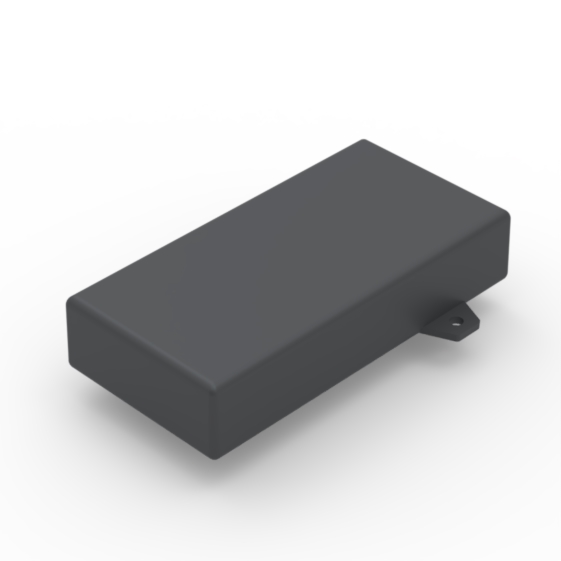

SR33K-E.9 NEW	127,9	64	26,30	9004	TERLURAN GP-22	120	57	4	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120 MAX PCB W (mm): 57 Screws: 4 Battery: Accessories: Drawings: PDF DWG

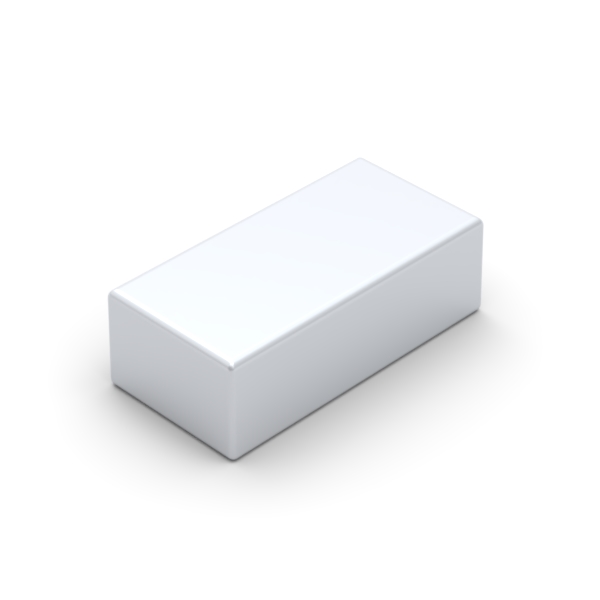

SR34K.7 NEW	127,9	64	41	9002	TERLURAN GP-22	120	57	4	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120 MAX PCB W (mm): 57 Screws: 4 Battery: Accessories: Drawings: PDF DWG

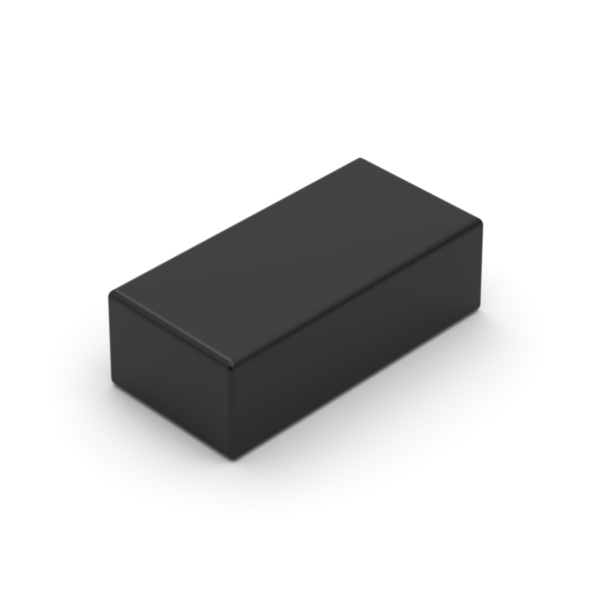

SR34K.9 NEW	127,9	64	41	9004	TERLURAN GP-22	120	57	4	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120 MAX PCB W (mm): 57 Screws: 4 Battery: Accessories: Drawings: PDF DWG

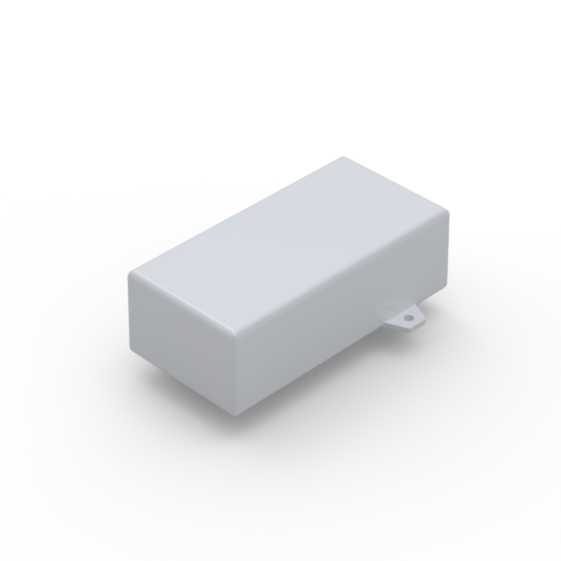

SR34K-E.7 NEW	127,9	64	41	9002	TERLURAN GP-22	120	57	4	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120 MAX PCB W (mm): 57 Screws: 4 Battery: Accessories: Drawings: PDF DWG

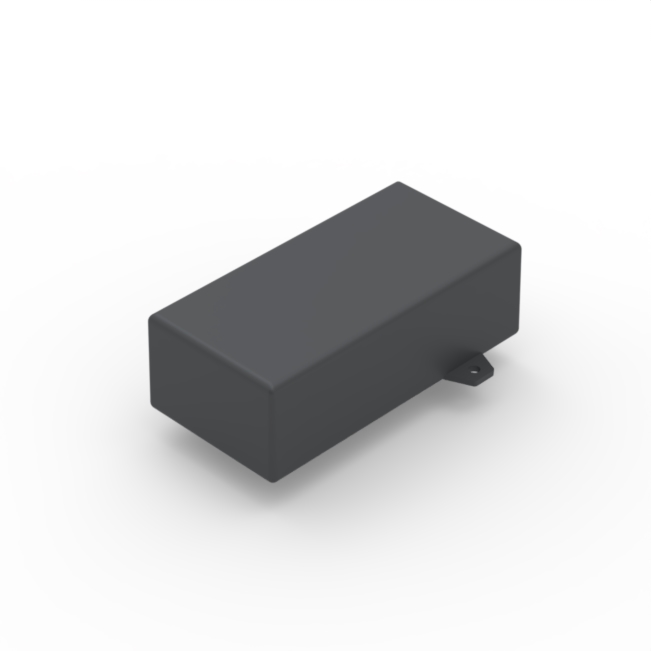

SR34K-E.9 NEW	127,9	64	41	9004	TERLURAN GP-22	120	57	4	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120 MAX PCB W (mm): 57 Screws: 4 Battery: Accessories: Drawings: PDF DWG
